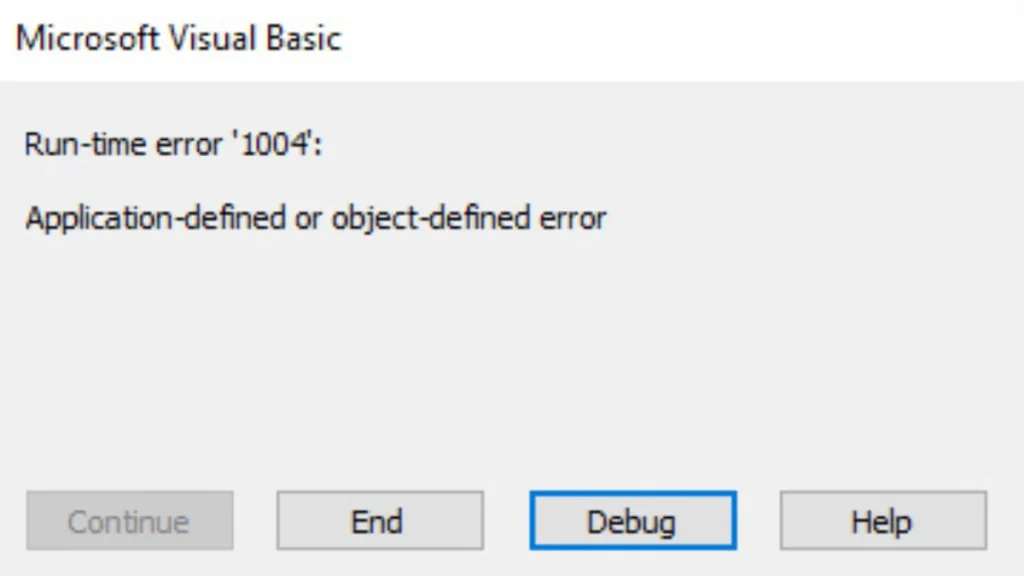

How to Fix Run-time Error 1004 in Excel: Causes, Solutions & VBA Troubleshooting

Run-time Error 1004 is a common Microsoft Excel error that occurs when executing VBA (Visual Basic for Applications) code. It usually happens when the VBA macro tries to perform an operation that Excel cannot complete due to issues like invalid object references, unavailable ranges, or conflicts with add-ins.

Common Causes of Run-time Error 1004

This error may occur due to several reasons, including:

1. Invalid Object References
   • Attempting to reference a worksheet, range, or workbook that does not exist.
   • Using VBA to open a workbook that is already open.
2. Incorrect or Mismatched Data Types
   • Using an incorrect function or method within the VBA code.
   • Invalid variable types leading to conflicts.
3. Corrupted Macros or Excel Files
   • Errors in existing macros or damaged Excel files may cause execution failures.
4. Duplicate Names in Excel Objects
   • Naming a worksheet, range, or object with a name that already exists within the workbook.
5. Permission Restrictions
   • Trying to modify a file without sufficient permissions can trigger the error.
6. Using the Select Method Incorrectly
   • Selecting a range without first activating the correct worksheet.
7. Too Many Legend Entries in Charts
   • When the number of legend entries exceeds available space, this error may appear.

Methods to Fix Run-time Error 1004

1. Check and Correct VBA Code

Ensure that all objects referenced in the VBA code exist and are correctly named. Instead of using Select or Activate, directly assign values.

Incorrect:

Sheets("Sheet1").Select
Range("A1").Select
Selection.Value = "Test"

Correct:

Sheets("Sheet1").Range("A1").Value = "Test"

2. Delete Problematic Add-ins

Incompatible add-ins can sometimes cause the error. Follow these steps to remove them:

• Open Excel and go to File > Options > Add-ins.
• Under Manage, select Excel Add-ins and click Go.
• Locate and delete any problematic add-ins such as GWXL97.XLA.

3. Verify Excel File Permissions

If you lack permission to modify an Excel file, adjust the file permissions:

• Right-click on the Excel file and select Properties.
• Click the Security tab and then Edit.
• Click Add, then Advanced, and select Find Now.
• Choose Everyone, click OK, and grant full control.

4. Repair Corrupted Excel Files

If the error is due to a corrupted Excel file, use Excel’s built-in repair tool:

• Open Excel and click File > Open.
• Select Browse and locate the damaged file.
• Click on the dropdown arrow next to Open, then select Open and Repair.
• Click Repair to recover as much data as possible.

If this does not work, third-party tools like Stellar Repair for Excel can help repair severely damaged files while maintaining data integrity.

5. Optimize Large Data Operations

• Break large data operations into smaller tasks.
• Use Application.ScreenUpdating = False to improve macro efficiency.

6. Adjust Chart Legend Entries

If the error is caused by excessive legend entries:

• Reduce the font size of the legend.
• Reposition the legend layout to optimize space.

Conclusion

Run-time Error 1004 in Excel VBA is mainly caused by invalid object references, incorrect code syntax, add-in conflicts, or file corruption. By following these troubleshooting methods—correcting VBA scripts, managing add-ins, adjusting permissions, and repairing files—you can effectively resolve the error and prevent it in the future.
